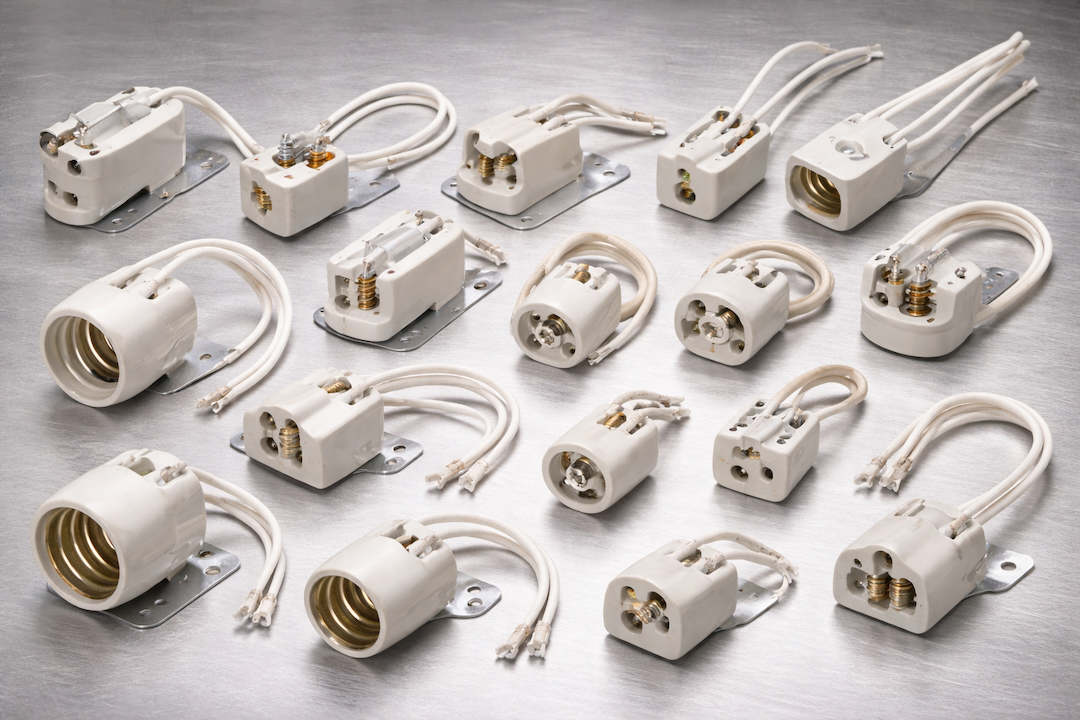

HID & Porcelain Lamp Holders
Manufacturer in India
Precigenix manufactures HID and incandescent porcelain lamp holders — E40, E27, B22, G9 and custom types — with 100% in-house ceramic housing and metal alloy production in Jamnagar, Gujarat. Direct vendor for Bajaj Electricals, Crompton Greaves and Havells India.
PRODUCT
TYPES
E40 Mogul Lamp Holders
Large Edison screw E40 porcelain lamp holders for high-wattage HID lamps — mercury vapour, metal halide, high-pressure sodium used in street lights and floodlights.
- Base: E40 (Mogul/Goliath screw)
- Rating: 1000W / 500V
- Body: Vitrified porcelain
- Terminals: Brass / copper alloy
E27 Medium Lamp Holders
Standard Edison screw E27 porcelain lamp holders for high-pressure sodium, metal halide and general purpose lamps up to 400W.
- Base: E27 (Medium screw)
- Rating: 400W / 250V
- Body: Vitrified porcelain
- Mount: Screw / pendant / bracket
B22 Bayonet Lamp Holders
B22 bayonet porcelain lamp holders for incandescent, CFL and HID lamps. Used in industrial and commercial luminaires.
- Base: B22 (Bayonet cap)
- Rating: 500W / 250V
- Body: Ceramic / porcelain
- Wiring: Pre-wired / open terminal
Metal Halide Lamp Holders
Specialised lamp holders for metal halide HID lamps used in sports stadium floodlights, industrial high-bay and commercial lighting.
- Base: E40 / RX7s / Fc2
- Temperature: -40°C to +250°C
- Ceramic: High-temperature alumina
- Used in: IPL stadium floodlights
Double-Ended Halogen Holders
R7s and Fc2 ceramic holders for double-ended halogen and metal halide lamps used in floodlights, projectors and stage lighting.
- Types: R7s (78mm, 118mm, 189mm), Fc2
- Temperature rating: 350°C continuous
- Material: High-alumina ceramic
- Terminals: Nickel-plated brass
Porcelain Fuses & Connectors
Ceramic fuse carriers, HRC fuse bases and high-temperature connectors for industrial electrical panels and distribution boards.
- Fuse types: Kitkat, HRC, NH
- Rating: 32A to 630A
- Body: High-grade porcelain
- Standard: IS 2208 / IS 9671
SPECS &
STANDARDS
| Parameter | Specification |
|---|---|
| Body Material | Vitrified porcelain / High-alumina ceramic |
| Metal Parts | ETP brass / Copper alloy / Nickel-plated brass |
| Base Types | E10, E12, E14, E27, E40, B15, B22, G4, G9, GU10, R7s, Fc2 |
| Power Rating | Up to 1000W |
| Voltage Rating | Up to 500V AC |
| Temperature Rating | -40°C to +250°C (standard) / 350°C (high-temp ceramic) |
| Standards | IS 3323 / IS 3553 / CE |
| Direct Vendor For | Bajaj Electricals, Crompton Greaves, Havells India, Wipro Lighting |
COMMON
QUESTIONS
What is the difference between E27 and E40 lamp holders?
E27 (Medium Edison screw) is the standard lamp base for lamps up to 400W used in residential, commercial and small industrial applications. E40 (Mogul/Goliath screw) is a larger base for high-wattage HID lamps (up to 1000W) used in street lighting, floodlights and sports stadium lighting. Precigenix manufactures both E27 and E40 porcelain lamp holders.
What type of lamp holder is used in stadium floodlights?
Stadium floodlights typically use E40 metal halide lamp holders rated for 400W to 1000W. Precigenix supplies metal halide lamp holders used in VIVO IPL cricket stadium floodlights across India, in association with Bajaj Electricals enclosures.
What is a porcelain lamp holder used for?
Porcelain (ceramic) lamp holders are used where high-temperature resistance, electrical insulation, and durability are essential — such as in HID luminaires, industrial high-bay lights, kiln lights, and outdoor street lighting. Porcelain handles temperatures up to 250°C continuously.
Which companies does Precigenix supply lamp holders to?
Precigenix is a direct approved vendor for Bajaj Electricals, Crompton Greaves, Havells India, Wipro Lighting, and GE Lighting. We also supply to lamp manufacturers, luminaire assemblers and electrical OEMs across India.
Can Precigenix make custom lamp holders?
Yes. Custom lamp holders and ceramic components can be manufactured to specific base types, dimensions, power ratings and mounting configurations. Contact us with your technical drawing or sample for a custom manufacturing quote.
Get a Factory-Direct Quote from Jamnagar
Share your requirements — specifications, quantity, standards. Our team responds within 24 hours.
